CNC Turning
Rotational parts such as shafts, bushings and flanges are machined to your drawing, and every batch is verified by measurement.
erk
CNC turning, 5-axis machining, tooling and fixture manufacturing
Production to the standards the defense industry demands: every part is measured, verified and marked for traceability.
Your request is answered within the same business day.İkitelli OSB, Başakşehir / Istanbul, Türkiye

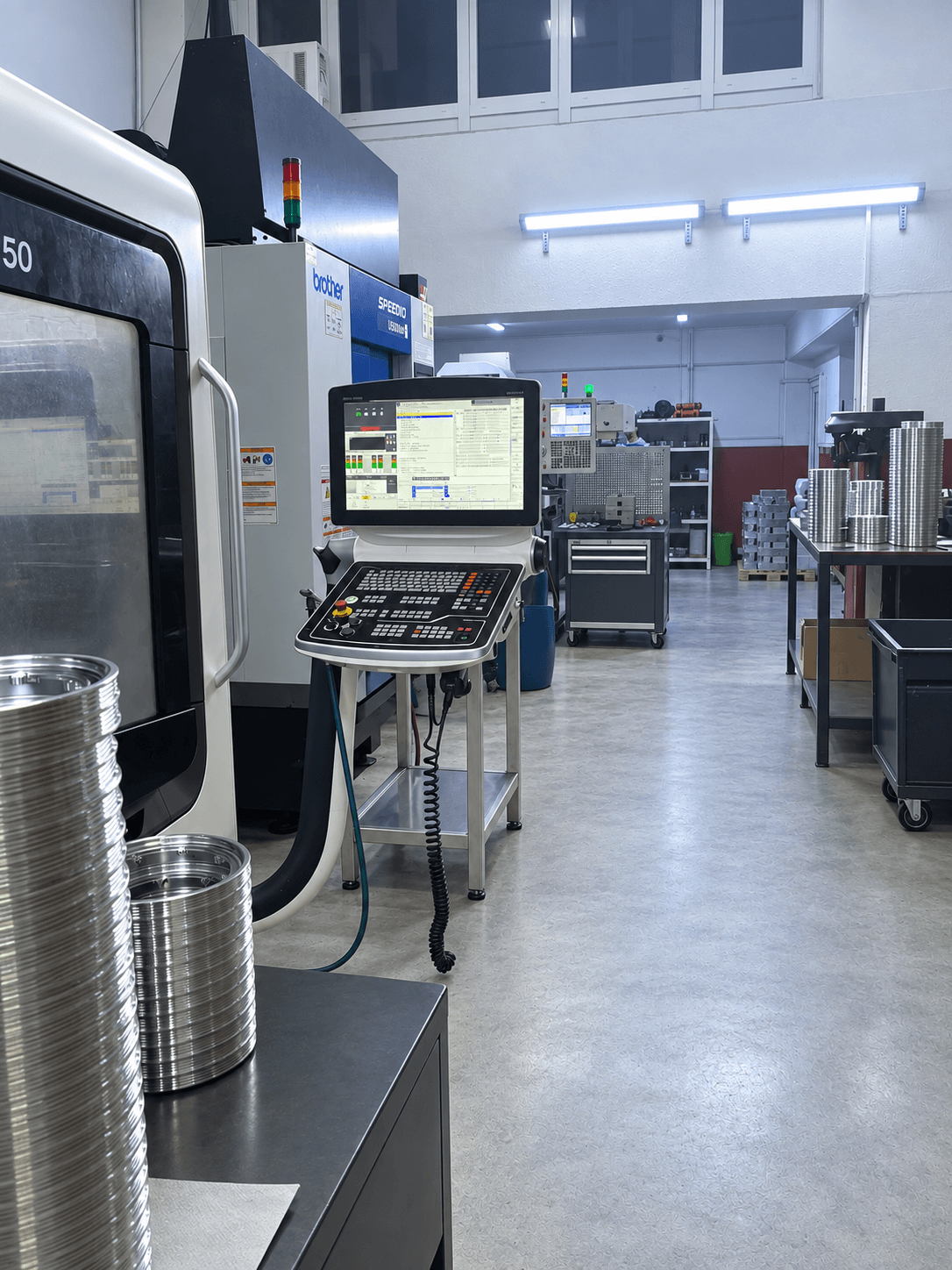

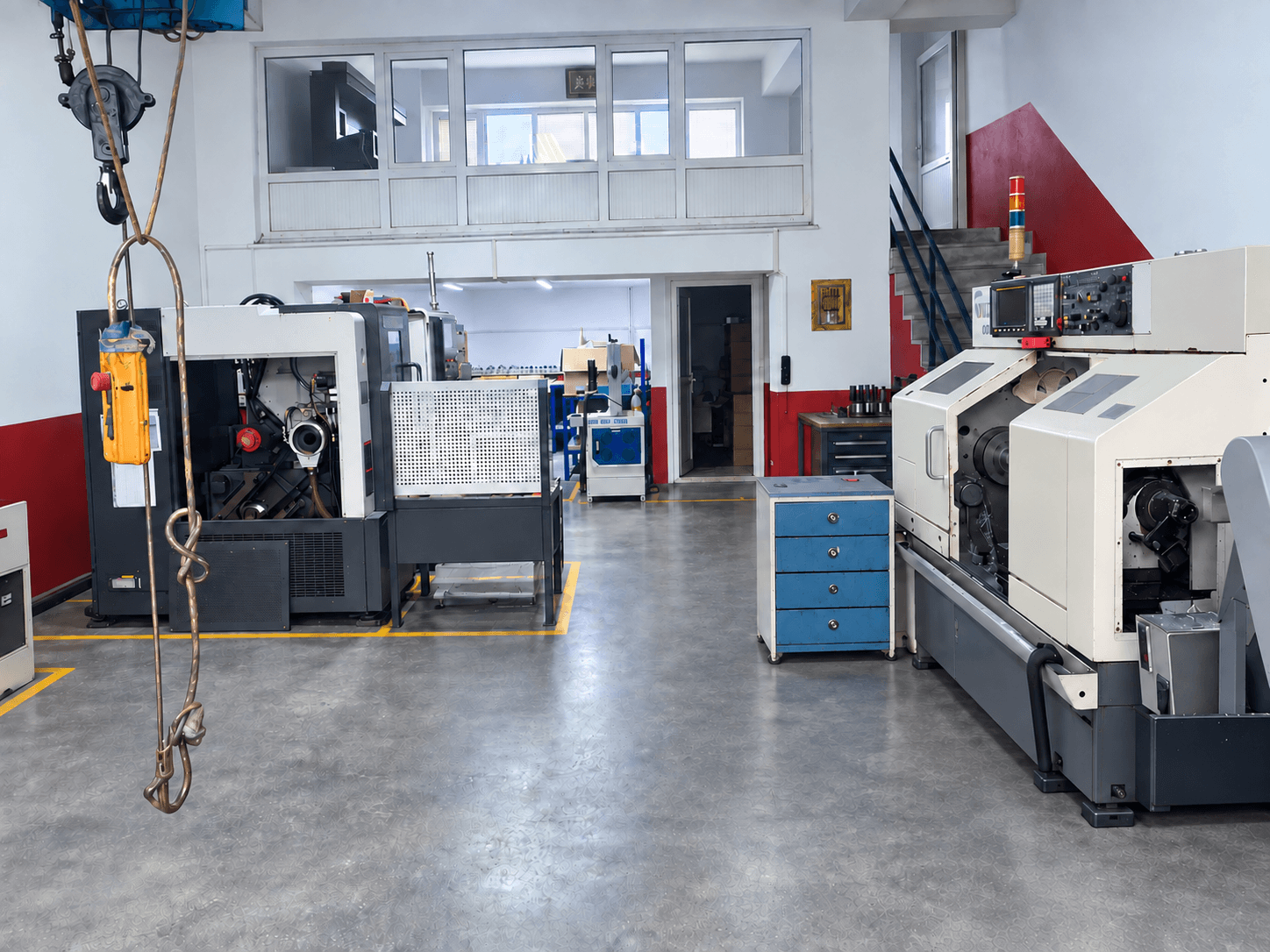

Our Machine Park
We deliver the part on your technical drawing, measured and marked.
ERK Makina carries out CNC turning, 5-axis machining, tooling and fixture manufacturing for every industry that demands high precision and measured quality.
Every job starts with a technical drawing and moves forward under one roof: the right production method, measurement checks and permanent marking.
Our focus is medium-sized, high-precision parts: a dimension that holds in the first batch should hold in every batch that follows.
What Do We Manufacture?
We manufacture for every industry that needs medium-sized, high-precision, traceable parts. Six services, one point of contact.
02
Contract CNC Turning
When your capacity falls short or you would rather not invest in new machines, we produce your turned parts to your drawing.
03
5-Axis CNC Machining
Complex parts with several machined faces can be completed in a single setup; fewer setups mean less risk of dimensional drift.
04
Hot Press Die Manufacturing
Hot press dies and die components are machined to the dimensions and tolerances on your technical drawing.
05
Custom Tooling and Fixture Manufacturing
Clamping, positioning and inspection fixtures built for your part, from prototype to series production.
06
Custom Machine Spare Part Manufacturing
Machine parts whose manufacturer cannot be found or that take too long to source are redesigned from measurements of a sample part or from your drawing, then manufactured.
Machining, measurement and marking in one facility.
Turning, 5-axis machining, coordinate measurement and laser marking are all carried out under one roof; your part is measured and marked without leaving our facility. Catalog specifications of the machines are shown below; the full list is on the Machine Park page.

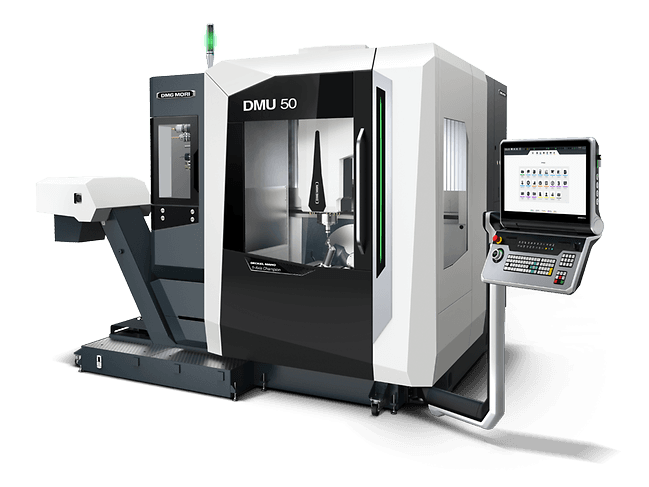

5-Axis Machining Center
DMG MORI DMU 50
Machines parts with complex geometry in a single setup.
- Axes
- Simultaneous 5-axis
- Table diameter
- Ø630 mm
- Max. workpiece weight
- 300 kg

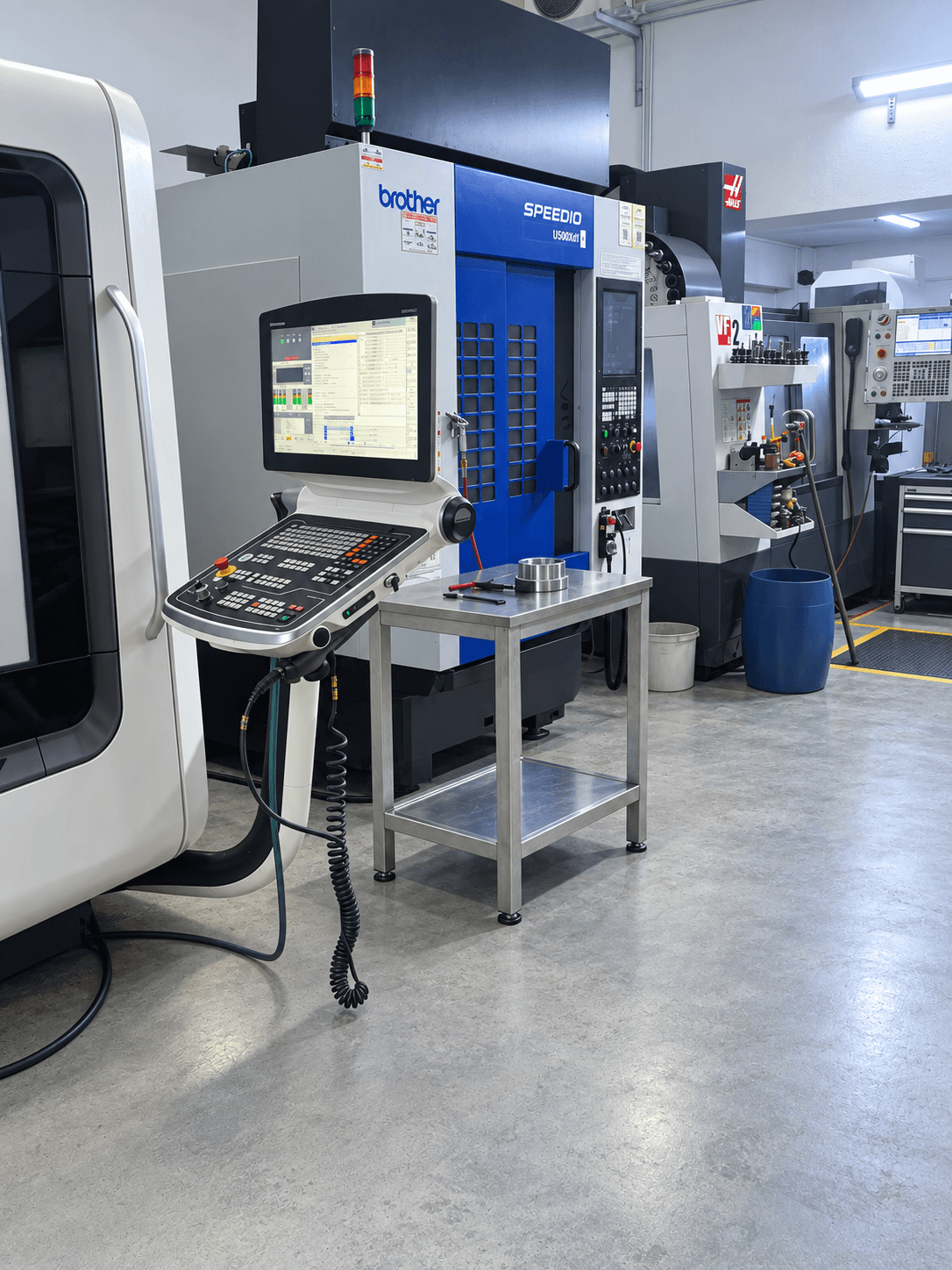

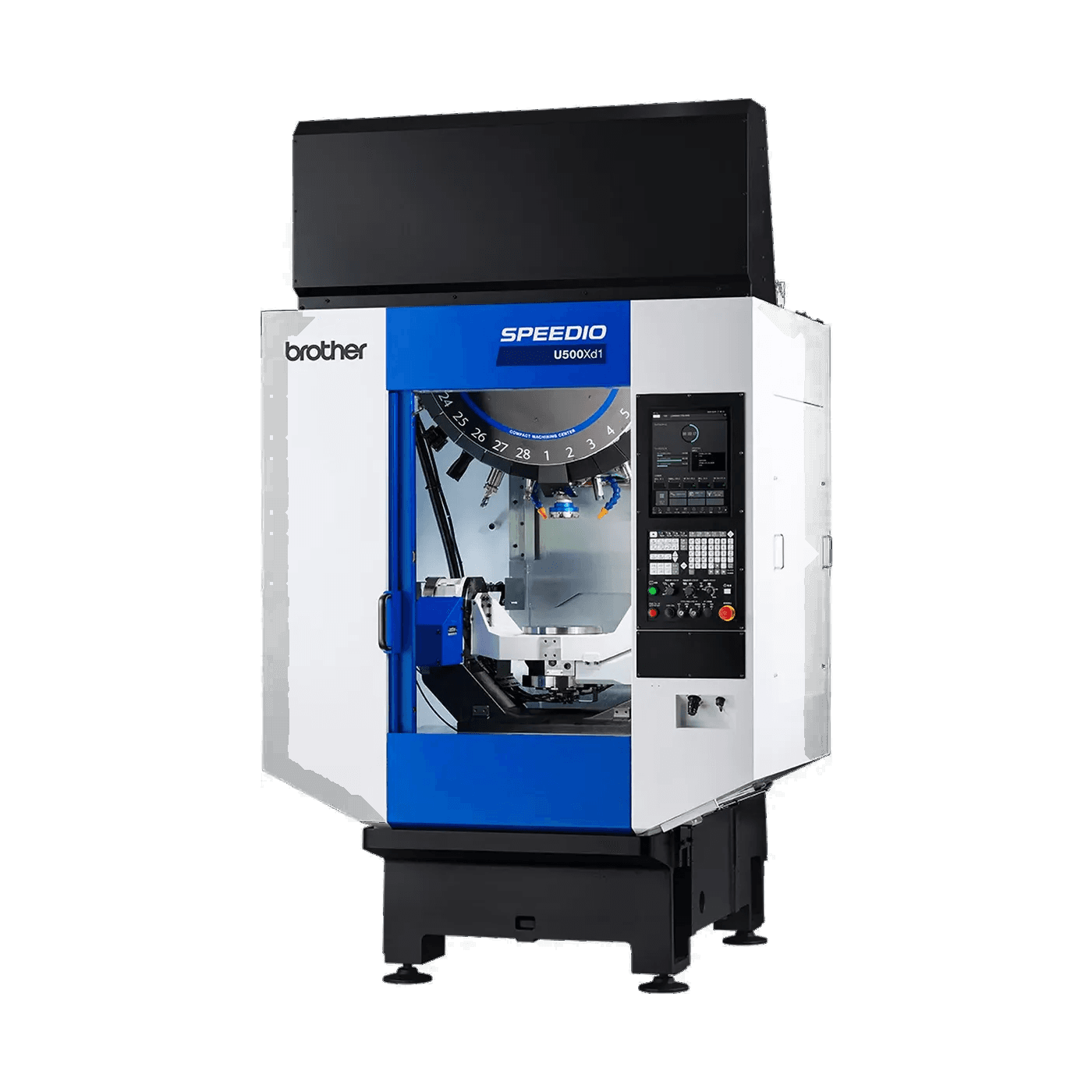

Rotary Table Machining Center
Brother Speedio U500Xd1
Multi-face, high-speed machining of small and medium-sized parts.
- Axes
- 3 axes, A and C rotary table
- Axis travels (X / Y / Z)
- 500 x 400 x 300 mm
- Spindle speed
- 16,000 rpm

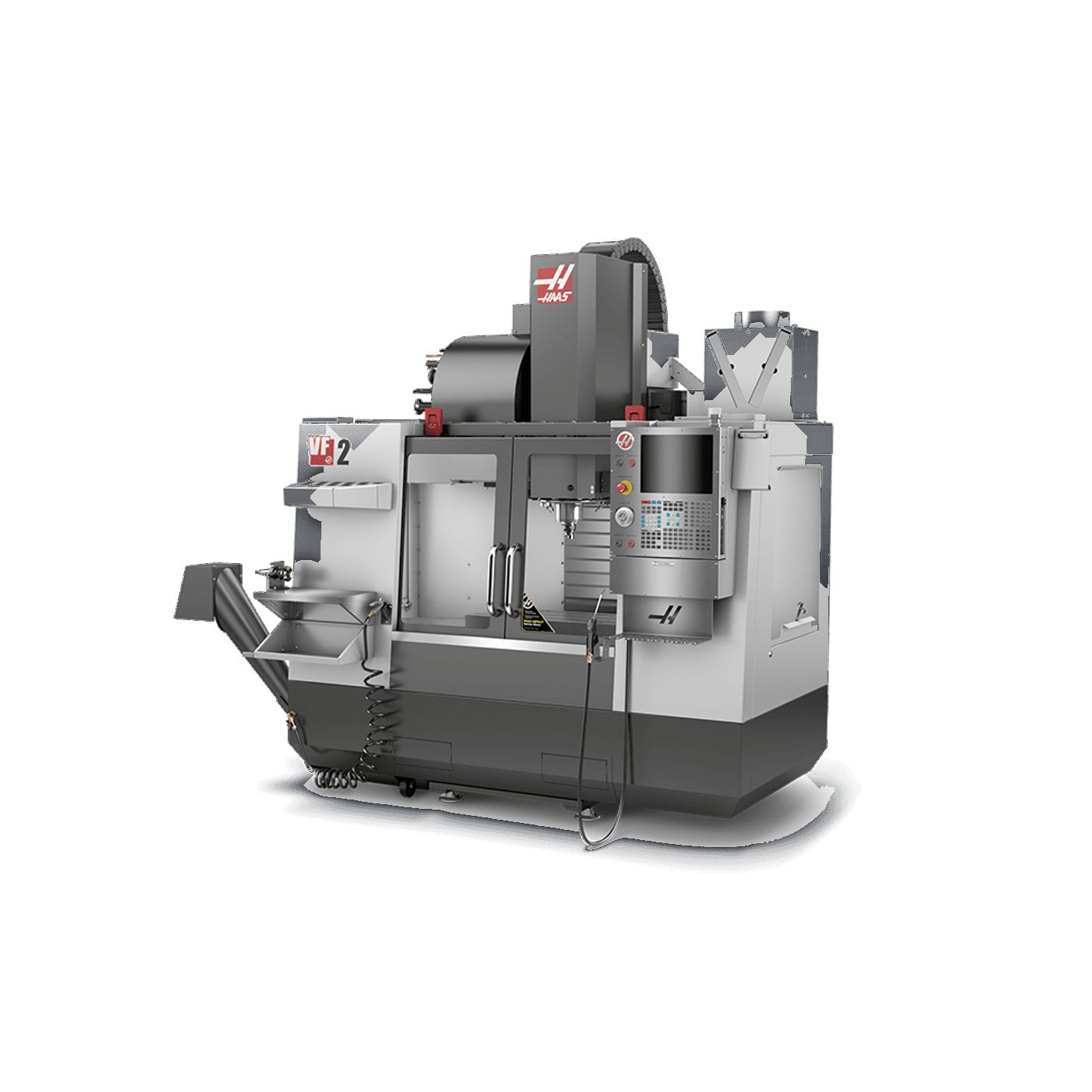

Vertical Machining Center
Haas VF-2
Machining of long prismatic parts.
- Axes
- 3 axes
- Axis travels (X / Y / Z)
- 762 x 406 x 508 mm
- Table size
- 914 x 356 mm

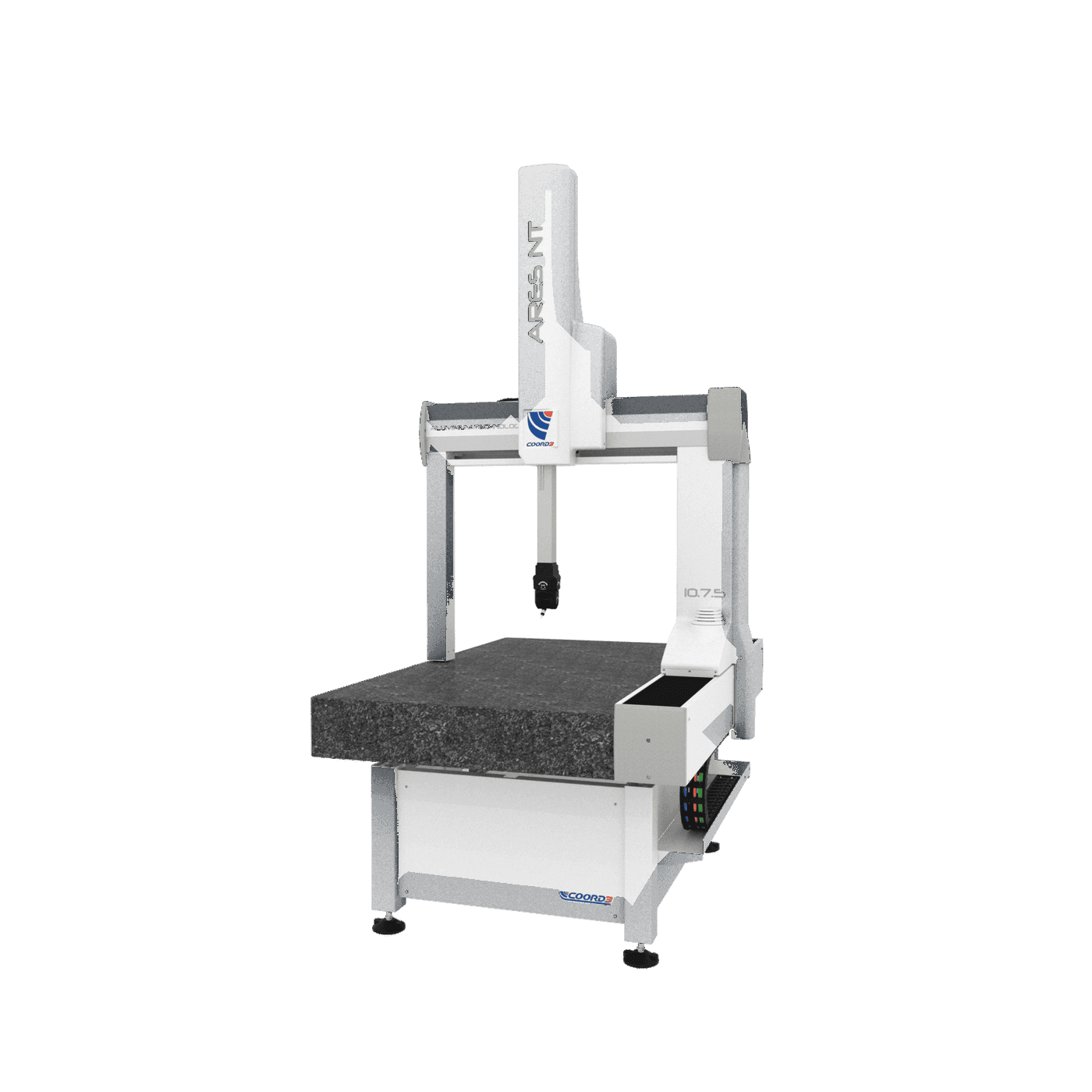

Coordinate Measuring Machine
COORD3 ARES
Final three-dimensional measurement and verification of parts.
- Type
- Bridge-type CMM
- Scale resolution
- 0.1 µm
- Accuracy standard
- ISO 10360-2 (manufacturer factory test)

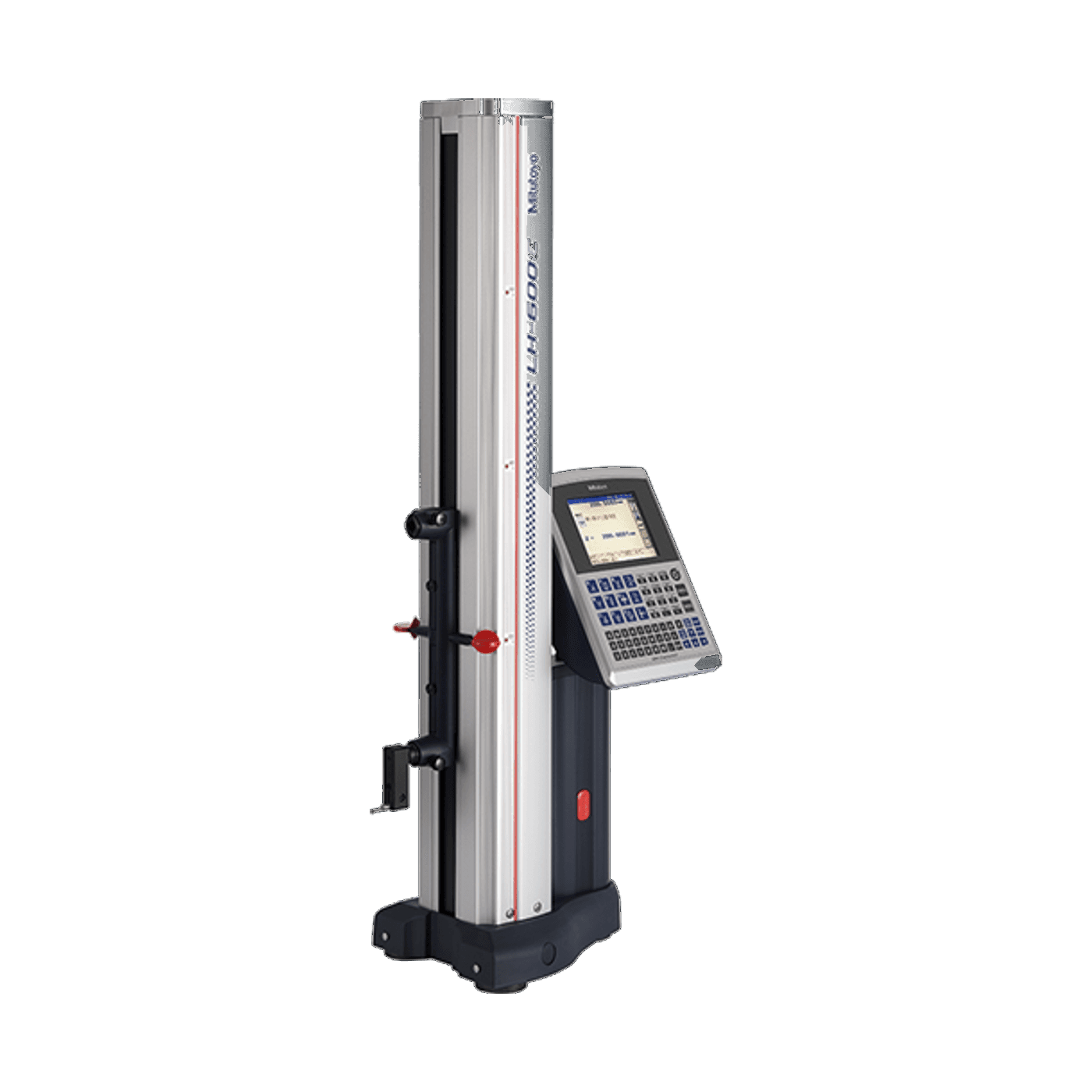

Height Gauge
Mitutoyo LH-600
In-process height and bore checks during production.
- Indication accuracy
- ±(1.1 + 0.6L/600) µm (L: mm)
- Resolution
- 0.1 µm
- Measurement
- 2D, height and bore

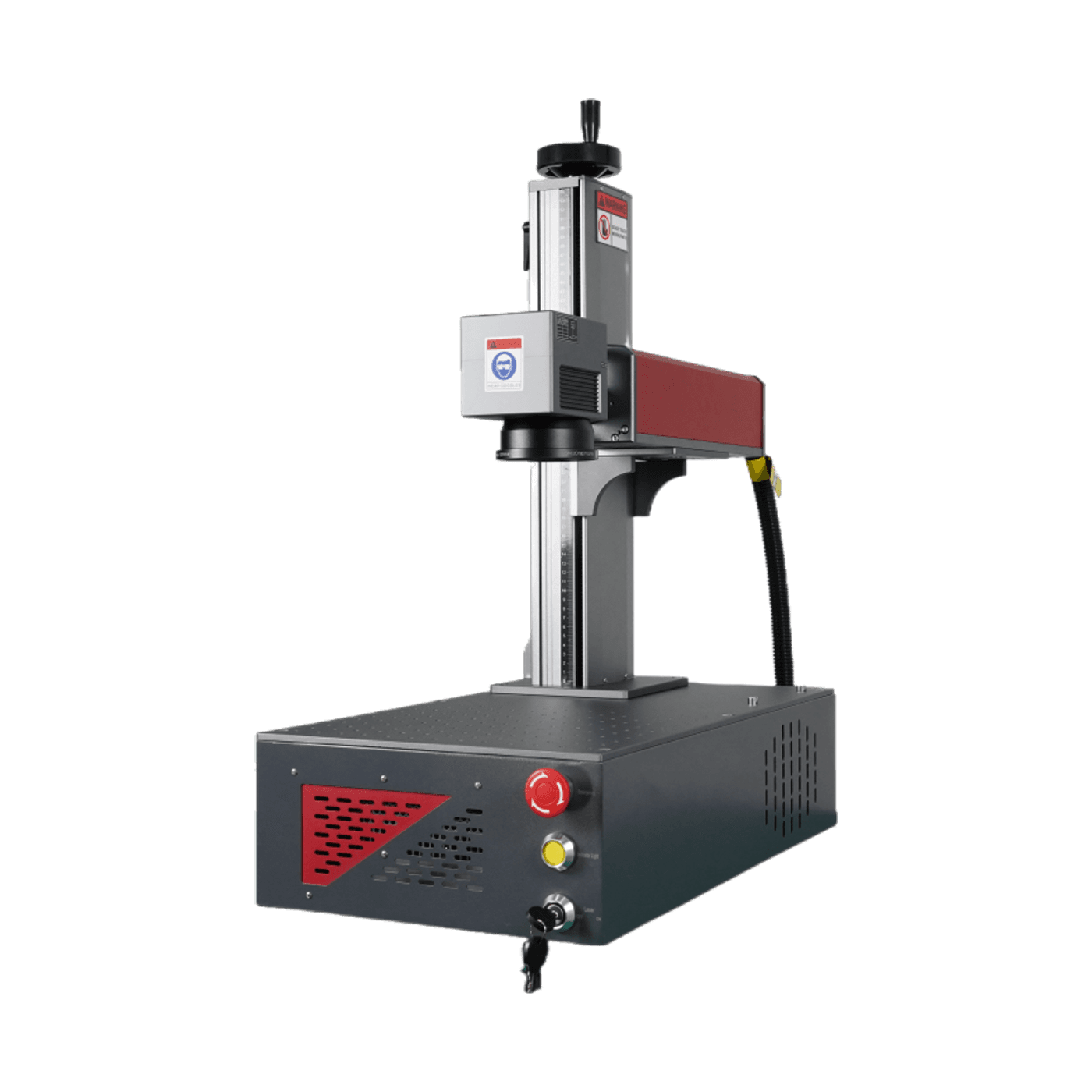

Laser Marking
Fiber Laser Marking
Permanent serial number and lot code marking on parts.
- Laser type
- Fiber
- Wavelength
- 1,064 nm
- Marking
- Serial number, lot code, DataMatrix code
We do the design and the machine programming ourselves.
Tooling and fixture design, 3D modelling and every machine program are prepared in house with Siemens NX. The dimension in the design and the toolpath that reaches the machine come from the same model.
NX CAD
Design
Whatever form your data arrives in, we build the 3D model that production works from.
Tooling and fixture design
Tooling and fixtures built for your part are designed by our own team; design and manufacturing move forward under one roof.
3D model from a sample part
If a sample part is all you have, we take the dimensions from the part itself and build the production 3D model from scratch.
3D model from a technical drawing
Send a PDF or DWG technical drawing and we create the 3D model, so you do not need a separate supplier to draw it for you.
Manufacturability feedback
At the quotation stage your part is reviewed with a manufacturing eye, and anything that would make production harder is reported to you before manufacturing starts.
NX CAM
Programming
Toolpaths are prepared and checked before production, not at the machine.
5-axis toolpaths
Simultaneous 5-axis toolpaths for complex surfaces are generated from the 3D model of the part.
Turning programs
Turning programs for rotational parts are written by the same team, again from the 3D model of the part.
Simulation before the machine
Every program is simulated before it runs; collisions between tool, setup and fixture are seen on screen before the job reaches the machine.
Every machine in one environment
Programs for turning, vertical machining and 5-axis machines come out of the same environment; whichever machine the job lands on, the method stays the same.
Send us your STEP or IGS model, or your DWG or PDF technical drawing, and let us assess manufacturability and the production method based on your model.
Why ERK Makina
We do not ship a part we have not measured.
We manufacture parts for supply chains where measurement and traceability are mandatory: measured, marked and repeatable production.
In-process measurement with ±1.1 micron accuracy.
Inspection starts during production, not at shipment.
01
Measurement during production and before shipment
Parts are checked during machining, and before shipment each part is verified in 3D on a coordinate measuring machine (CMM).
02
Permanent traceability
Each part is laser marked with a serial number, lot code and DataMatrix code, so its batch remains identifiable in the field.
ERK in Numbers
We manufacture by measuring, recording and marking.
We work with the same discipline in every industry where tolerances are not negotiable.
- 10+
- years of precision manufacturing experience
- ±1.1
- µm height measurement accuracy
- 5
- axes of simultaneous machining
How We Work
Four steps from your technical drawing to shipment.
- 01
Quote
Send us your technical drawing or 3D model together with the quantity you need.
- 02
Technical Review
We work with you to define the material, tolerances and production method.
- 03
Manufacturing and Quality Control
We machine your parts and measure them during production and before shipment.
- 04
Marking and Shipment
We give every part a permanent identity and prepare the parts for shipment.
Contact
Request a quote for your part
Send us your technical drawing and we will answer your request within the same business day.
